Waterjet cutting machine uses cold supersonic abrasive erosion to cut almost any materials both metals and nonmetals. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.

Cutting Table
Size of the table can be selected as per the length x width of the material

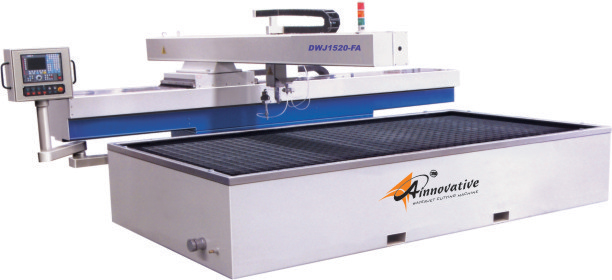

DWJ 15/20 Series Flying Arm CNC Cutting Table

Technical parameters
DWJ Flying Arm CNC Cutting Table Series
Model DWJ1313-FB DWJ1425-FB DWJ1525-FB DWJ2030-FB DWJ2040-FB DWJ2060-FB DWJ2080-FB
Table Size 1400x1400 mm 1600x2600 mm 1600x2600 mm 2100x3100 mm 2100x4100 mm 2100x6100 mm 2100x8100 mm
Travel X-axis 1300mm 1400mm 1500mm 2000mm 2000mm 2000mm 2000mm
Y-axis 1300mm 2500mm 2500mm 3000mm 4000mm 6000mm 8000mm
Z-axis 150mm 150mm 150mm 210mm 210mm 210mm 210mm
NC System Washing 320 W Fagor / Siemens / PC Based
Positional Accuracy 0.04mm
Repeat Accuracy 0.04mm
Traverse Speed 0~20m/min


DWJ 13 / 14 / 15 / 20 Series Flying Arm CNC Cutting Table
DWJ 15 Series Bridge CNC Cutting Table
DWJ 30 Series Bridge CNC Cutting Table
KMT Series UHP Pumps
Dardi Series UHP Pumps
Optional Accessories
